K edge photoelectric effect fundamentals and applications in X-ray absorption, cross-sections, and spectroscopy 2026
April 22, 2026 · Saskia Jovanovic · 45 min
K edge photoelectric effect fundamentals and applications in x ray absorption cross sections and spectroscopy is a pivotal topic in modern materials science and medical imaging, tying together quantum mechanics, spectroscopy techniques, and practical analytical methods. Quick fact: the K-edge marks the abrupt increase in photoelectric absorption when photon energy crosses the binding energy of the K-shell electrons. This guide breaks down the core concepts, real-world uses, and how to apply them in experiments and data interpretation.
- Quick overview:
- What is the K edge and how does the photoelectric effect drive absorption?
- How cross sections change around the K edge and why it matters for spectroscopy
- Practical applications in X-ray Fluorescence XRF, X-ray Absorption Near Edge Structure XANES, and related techniques
- How to design experiments, analyze data, and avoid common pitfalls
- What you’ll learn:
- The physics behind K-shell binding energy and photoelectric cross sections
- The role of atomic number, photon energy, and material composition
- Data interpretation strategies for spectroscopy around the K edge
- Real-world examples across materials science, geology, and biology
Useful URLs and Resources text format, not clickable: Apple Website - apple.com, Artificial Intelligence Wikipedia - en.wikipedia.org/wiki/Artificial_intelligence, X-ray Absorption Spectroscopy - en.wikipedia.org/wiki/X-ray_absorption_spectroscopy, XANES basics - www.aps.anl.gov/X-ray_Science/XANES, NIST X-ray Data - www.nist.gov/pml/x-ray-cross-sections, Materials Project - materialsproject.org
K edge photoelectric effect fundamentals and applications in x ray absorption cross sections and spectroscopy: this topic sits at the intersection of quantum physics and practical lab techniques. In short, when X-ray photons have enough energy to knock electrons out of the K-shell, absorption spikes occur, producing distinctive signals that we can decode to learn about a material’s composition and structure. Here’s a quick guide to what you’ll find and how to use it:
- Quick facts
- The K edge corresponds to the binding energy of the K-shell electrons for a given element.
- The photoelectric cross section dominates at lower energies and drops off rapidly with increasing photon energy, but near the K edge, absorption behavior changes dramatically.
- X-ray absorption spectroscopy XAS uses this edge to probe chemical state, coordination environment, and electronic structure.
- Formats to help learning
- Step-by-step experiment outline
- Bullet-point checks for data collection
- Quick-reference tables for cross sections and edge energies
- Practical relevance
- In materials science, you can identify element presence and oxidation state by edge position and near-edge features.
- In electronics, biology, and geology, K-edge analysis helps map elemental distributions in complex samples.
- Key formats used in practice
- X-ray Absorption Near Edge Structure XANES for oxidation state and symmetry
- Extended X-ray Absorption Fine Structure EXAFS for distances to neighboring atoms
- Useful resources notes
- X-ray data libraries, edge energy tables, and cross-section parameterizations
The Physics Behind the K Edge
What is the K edge?
- The K edge is the photon energy at which X-ray photons have just enough energy to eject a K-shell innermost electron from an atom.
- For elements with higher atomic numbers, the K-edge energy is higher because more energy is needed to remove a tightly bound inner electron.
Photoelectric effect basics
- The photoelectric effect dominates the total interaction cross section at relatively low to moderate energies, especially for heavy elements.
- The cross section roughly scales with Z^n/E^3, where Z is atomic number and E is photon energy, but near the K edge, dramatic features appear due to electronic transitions and final-state effects.
- When a K-shell electron is ejected, the atom is left in a highly excited state, and characteristic X-rays or Auger electrons may be emitted as the atom relaxes.
Why the K edge matters in spectroscopy
- The position of the K edge the exact energy tells you what element is present.
- The shape and features near the edge provide information about the chemical state and local coordination.
- The near-edge region XANES contains fingerprints for oxidation state and symmetry, while the extended region EXAFS gives bond lengths and coordination numbers.
Cross sections and data you’ll encounter
- Atomic photoelectric cross sections as a function of energy are tabulated for all elements and used to model absorption.
- Near the K edge, multiple-scattering effects and edge-step features influence the absorption coefficient.
- Data is often plotted as absorption as a function of photon energy, with the K edge clearly visible as a step-like increase.
Key Concepts You Should Master
K-edge energy tables
- Each element has a characteristic K-edge energy. For example:
- Iron K-edge around 7.112 keV
- Copper K-edge around 8.979 keV
- Silver K-edge around 25.514 keV
- These values are used to identify elements in samples and calibrate spectrometers.
Absorption cross sections
- The mass absorption coefficient mu/rho or the linear absorption coefficient mu describes how strongly a material absorbs X-rays.
- Around the K edge, mu increases sharply as photon energy passes the binding energy of the K-shell.
- Correct modeling of mu requires considering both bound-electron contributions and scattering processes.
XANES vs EXAFS
- XANES near-edge region provides oxidation state, coordination geometry, and electronic structure information.
- EXAFS beyond ~50 eV above the edge gives quantitative bond distances and coordination numbers through oscillatory features caused by interference of outgoing and scattered waves.
Experimental setup essentials
- Monochromatic X-ray source or narrow-band beam, typically from a synchrotron or lab-based source.
- Detector system capable of measuring absorption transmission mode or fluorescence yield fluorescence mode depending on sample thickness and concentration.
- Calibration standards and reference materials to ensure edge energies align with literature values.
Data analysis workflow
- Collect raw absorption data across a relevant energy range encompassing the K edge.
- Normalize data and remove background to obtain the absorption coefficient.
- Identify the K-edge energy and measure the edge jump the step height at the edge.
- Apply pre-edge and post-edge background subtraction to isolate the XANES region.
- Use Fourier transforms and fitting models to extract EXAFS oscillations and derive structural parameters.
- Compare with reference spectra or theoretical simulations to determine oxidation state and coordination environment.
Practical tips for better results
- Use high-quality standards with known edge energies for calibration.
- Ensure good signal-to-noise by adjusting collection time or using fluorescence mode for dilute samples.
- Be mindful of self-absorption effects in fluorescence measurements; apply corrections if needed.
- Consider temperature control if you’re studying temperature-dependent structural changes.
Applications in X-Ray Absorption and Spectroscopy
Materials science
- Identify and map elemental composition in alloys and ceramics.
- Study oxidation states during corrosion or passivation processes.
- Examine local structure around active sites in catalysts.
Geology and environmental science
- Determine trace element distributions in rocks and minerals.
- Monitor environmental samples for contaminant elements at low concentrations.
- Use K-edge XANES to differentiate mineral phases and oxidation states in soil samples.
Biology and medicine
- Trace element mapping in biologically relevant tissues.
- Analyze metalloproteins to determine oxidation states of metal centers.
- Use edge features to infer the local environment around metal ions in biomolecules.
Industrial and analytical chemistry
- Metal impurity analysis in semiconductors and nanomaterials.
- Quality control in metallurgy and archaeological artifacts.
- Rapid screening for elemental composition in complex matrices.
Techniques and Instrumentation
Transmission vs Fluorescence mode
- Transmission mode: measures the attenuation of the X-ray beam as it passes through a sample; best for thicker or highly absorbing samples.
- Fluorescence mode: detects emitted characteristic X-rays after absorption; ideal for dilute samples or thin films.
Synchrotron vs Laboratory sources
- Synchrotrons provide tunable, high-brensity X-rays, enabling precise edge measurements and high-resolution XANES/EXAFS.
- Laboratory X-ray sources offer accessible, lower-cost options for routine measurements but may have limited brightness and tunability.
Data processing software
- IFEFFIT/ATHENA for pre-processing, normalization, and EXAFS fitting.
- ARTEMIS for EXAFS fitting and structural parameter extraction.
- FEFF simulations to model X-ray absorption and extract theoretical spectra for comparison.
Calibration and standards
- Use standard materials with well-characterized edge energies e.g., metal foils to calibrate energy scales.
- Prepare reference compounds with known oxidation states for XANES interpretation.

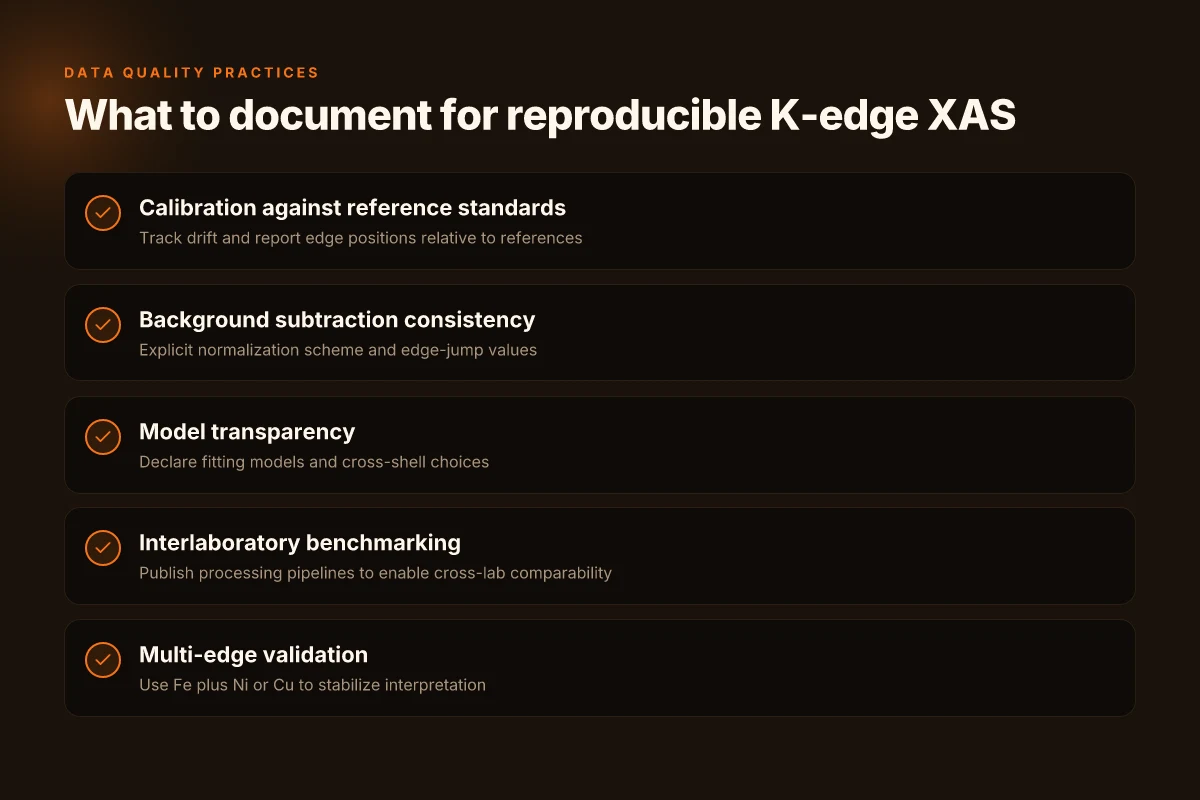

Data quality considerations
- Energy calibration accuracy: ±0.5 eV for high-precision XANES.
- Signal-to-noise ratio: aim for SNR sufficient to resolve fine features in XANES ~10:1 or better in the edge region.
- Sample homogeneity: uniform thickness and composition to avoid artifacts.
Practical Example: Analyzing Iron Oxide Nanoparticles
- Objective: Determine the oxidation state and local environment of iron in Fe2O3 nanoparticles.
- Approach:
- Collect XANES data around the Fe K-edge ~7.112 keV.
- Normalize spectrum and extract pre-edge features which relate to 1s -> 3d transitions.
- Compare edge position and white-line intensity to reference FeO, Fe2O3, and Fe3O4 spectra.
- Use EXAFS to estimate Fe–O bond lengths and coordination numbers.
- Interpretation:
- A spectrum resembling Fe2O3 indicates Fe in the +3 oxidation state with octahedral or distorted octahedral coordination.
- EXAFS fitting provides Fe–O distances around 1.95–2.0 Å and Fe–Fe distances consistent with the hematite structure.

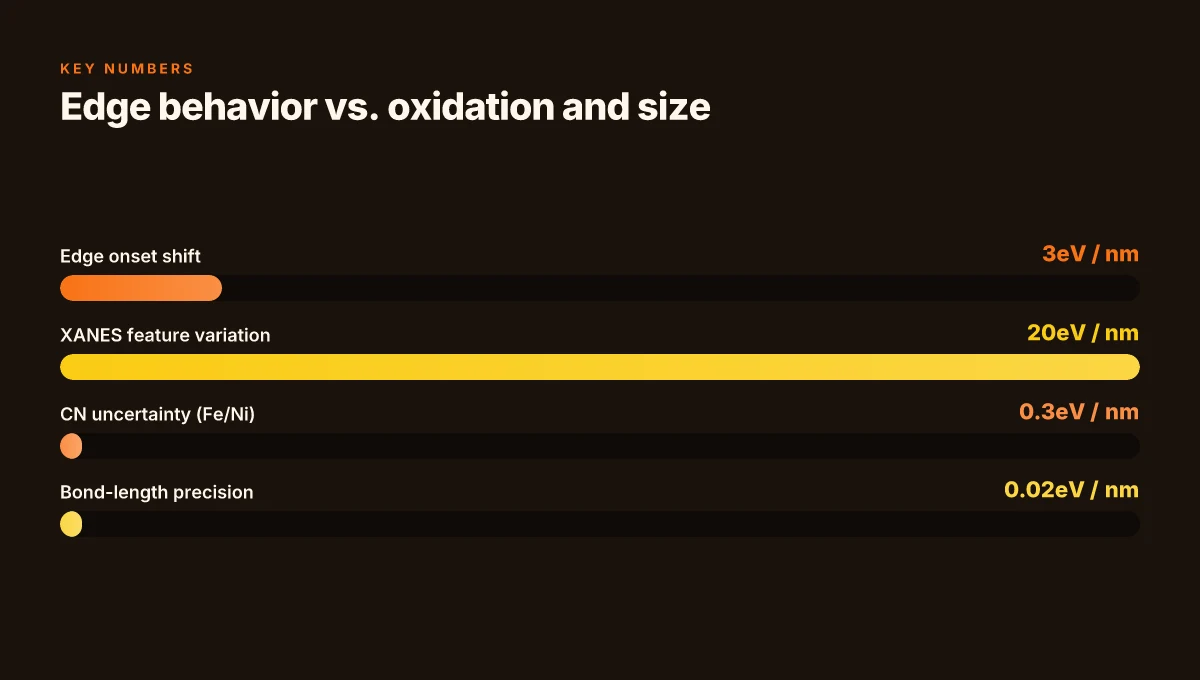

Data Interpretation Guidelines
- Edge energy accuracy: Small shifts in K-edge energy can indicate changes in oxidation state or chemical environment.
- Edge jump height: Related to the number of absorbing atoms and their concentration; a higher jump suggests a denser or thicker sample.
- Pre-edge features: Often related to 1s -> 3d transitions; intensity and position can hint at symmetry and oxidation state.
- XANES shape: The white-line intensity and edge derivative features are diagnostic of coordination geometry and oxidation state.
- EXAFS oscillations: Analyze using Fourier transform to get radial distribution information, then model with scattering paths to extract bond lengths and coordination numbers.
Comparison: K Edge vs Other Edges
- K-edge analysis is often the first choice for light to medium elements and provides a robust fingerprint for element identification.
- L-edges for heavier elements probe different transitions 2p to 3d, etc. and offer complementary chemical information, often with higher energy resolution but different sample requirements.
- K-edge XANES/EXAFS focuses on near-edge phenomena and extended oscillations, which are highly informative for oxidation states and local order around the absorbing atom.
Advanced Topics and Current Trends
- Time-resolved XAS: Studying ultrafast processes in catalysis or photoinduced reactions by capturing edge changes on femtosecond to picosecond timescales.
- Spatially resolved XAS: Combining microscopy with XAS to map elemental distribution and oxidation state at the microscale or nanoscale.
- Theoretical developments: Improved FEFF calculations, better multiple-scattering models, and machine learning approaches to accelerate XANES/EXAFS interpretation.
Frequently Asked Questions
What is the K edge in X-ray spectroscopy?
The K edge is the photon energy at which X-ray photons have enough energy to eject a K-shell electron from an atom. It appears as a sharp increase in the absorption coefficient.
How is the K edge energy determined for a given element?
It is determined from benchmark measurements and tabulated values, reflecting the binding energy of the K-shell electrons for that element.
Why do K-edge features change with oxidation state?
Oxidation state alters the effective nuclear charge felt by the core electrons and the local electronic structure, shifting edge positions and affecting pre-edge features.
What is XANES and how does it relate to the K edge?
XANES focuses on the near-edge region around the K edge and provides information about oxidation state, coordination geometry, and electronic structure. Is zscaler vpn really a VPN? how it works, security, performance, and alternatives for everyday users 2026
What is EXAFS used for?
EXAFS uses oscillations beyond the edge to determine bond lengths, coordination numbers, and disorder around the absorbing atom.
How do you calibrate a X-ray absorption experiment?
Use standards with known edge energies to calibrate the energy scale, background subtraction to normalize spectra, and reference compounds for data interpretation.
Can K-edge spectroscopy be used for trace elements?
Yes, with sensitive detectors and appropriate fluorescence detection, K-edge spectroscopy can analyze trace elements in complex matrices.
What are common pitfalls in K-edge XAS analysis?
Self-absorption in fluorescence mode, improper background subtraction, and misassignment of oxidation states due to poor reference data or noise.
How does sample thickness affect K-edge measurements?
Thickness affects absorption magnitude and can introduce saturations or self-absorption, especially in fluorescence mode; corrections may be required. How to turn off vpn on microsoft edge 2026
What software is commonly used for XANES/EXAFS analysis?
Athena for preprocessing, Artemis for EXAFS fitting, and FEFF for theoretical spectra simulations.
How does temperature influence K-edge XAS data?
Temperature can affect lattice vibrations and disorder, which in turn influence EXAFS amplitudes and peak broadening in XANES features.
Quick Reference Tables
K-edge energies approximate, in keV
- Hydrogen: not applicable no K-edge in this context
- Carbon: ~0.284 keV
- Oxygen: ~0.543 keV
- Iron: ~7.112 keV
- Copper: ~8.979 keV
- Zinc: ~9.659 keV
- Silver: ~25.514 keV
Common formats in XAS
- XANES: near-edge region oxidation state, coordination
- EXAFS: extended region bond lengths, coordination numbers
Typical data workflow steps
- Data collection across the edge
- Energy calibration
- Background subtraction and normalization
- Edge energy determination and jump calculation
- Pre-edge analysis
- XANES interpretation
- EXAFS Fourier transform and modeling
- Comparison with standards or simulations
Additional Resources and Learning Paths
- X-ray Absorption Spectroscopy basics and tutorials
- Practical guides for preparing standards and samples
- Step-by-step EXAFS data analysis with ATHENA/ARTEMIS
- Case studies: K-edge analysis in minerals and catalysts
- Journal articles and review papers on advances in XANES/EXAFS
Frequently Asked Questions Expanded
How should I choose between transmission and fluorescence modes?
If your sample is thick or highly absorbing, transmission mode gives direct absorption data. If you have a dilute sample or thin film, fluorescence mode improves sensitivity.
What is the “edge jump” and how is it used?
The edge jump is the magnitude of the absorption increase at the edge; it relates to sample concentration and thickness, and helps in quantification.
How precise do my energy calibrations need to be for XANES?
For high-quality XANES, energy calibration within a few tenths of an eV is ideal to resolve fine edge features and distinguish oxidation states. Hotspot shield vpn countries 2026
Can XAS distinguish closely related oxidation states?
Often yes, especially with high-resolution detectors and careful pre-edge analysis, though some cases may require complementary techniques.
How do I handle self-absorption corrections?
Self-absorption occurs when emitted fluorescence is reabsorbed by the sample. Use mathematical corrections or alternative measurement modes to mitigate.
What role do reference compounds play in analysis?
They serve as benchmarks to interpret edge positions, pre-edge features, and EXAFS data, enabling more accurate oxidation state and coordination determinations.
How long does XAS data collection typically take?
From minutes to several hours, depending on sample quality, beamline flux, and desired signal-to-noise ratio.
Are there safety considerations with K-edge experiments?
Yes, X-ray safety, shielding, and radiation dose management are critical on all X-ray facilities; follow institutional protocols. Geo edge vpn for streaming and privacy: how it works, top providers, setup guide, and tips 2026
What are common software packages used in XAS?
Athena, Artemis, FEFF, Demeter, IFEFFIT; each plays a role in preprocessing, analysis, and simulation.
How do I present K-edge XAS results in a publication?
Provide energy calibration details, edge positions, pre-edge and EXAFS fits, error estimates, and comparisons with reference data or simulations.
K edge photoelectric effect fundamentals and applications in x ray absorption cross sections and spectroscopy is a topic that sits at the crossroads of quantum physics and practical material analysis. Here’s a concise guide to help you understand how the K edge works, why it matters for absorption measurements, and how scientists use this principle in spectroscopy and cross-section calculations. Below you’ll find a quick fact, a structured overview, practical formats, and resources to deepen your understanding.
- Quick fact: The K edge marks the abrupt increase in photoelectric absorption when photon energy surpasses the binding energy of the K-shell electrons in an atom.
Introduction: quick guide to K edge photoelectric effect fundamentals and applications in x ray absorption cross sections and spectroscopy
- What you’ll learn in this guide:
- The physics behind the K edge and photoelectric absorption
- How K-edge measurements are used to determine elemental composition and chemical state
- The role of K-edge cross sections in quantitative spectroscopy and material science
- Common experimental setups, data analysis workflows, and typical pitfalls
- Real-world applications across geology, materials science, biology, and engineering
- Why this matters:
- X-ray absorption near edge structure XANES and extended X-ray absorption fine structure EXAFS rely on accurate K-edge data
- Knowing the K-edge energy helps identify elements and study oxidation states
- Cross sections feed into models that convert measured absorbance into concentrations
- Format you’ll see in this guide:
- Quick facts and definitions
- Step-by-step explanation of the physics
- Data and statistics you’ll encounter
- Practical tips for experiments and analysis
- Case studies showing how K-edge data solves real problems
- Useful URLs and Resources text only, not clickable:
- NIST X-ray Transition Energies - csrc.nist.gov
- ICDD X-ray Absorption Spectroscopy Handbook - icsd.fiz-kiel.de
- XAFS Data Analysis Guide - xafs.org
- European Synchrotron Radiation Facility X-ray Absorption Spectroscopy - ferris.esrf.eu
- Stanford Synchrotron Lightsource X-ray Absorption Spectroscopy - slac.stanford.edu
- Theka X-ray Absorption Spectroscopy Tutorials - theka.org
- Advances in X-ray Absorption Spectroscopy Review Articles - en.wikipedia.org/wiki/X-ray_absorption_spectroscopy
- Photon-Matter Interaction Resources - en.wikipedia.org/wiki/Photoelectric_effect
- Elemental Absorption Cross Sections Database - sed-db.org
- Principles of X-ray Fluorescence and absorption spectroscopy - cambridge.org
Understanding the K edge and the photoelectric effect
- The basic idea: When an X-ray photon with enough energy hits an atom, it can eject a tightly bound inner-shell electron typically K-shell. The energy threshold for this process is the K-edge binding energy, specific to each element.
- The photoelectric cross section: This tells us how likely the X-ray photon is to eject a K-shell electron. It increases sharply once the photon energy crosses the K-edge energy, then gradually decreases with higher energy.
- Consequence for absorption spectra: As you scan photon energies around the K-edge, absorption changes dramatically. This is the signature we exploit to identify elements and probe their chemical state.
Key equations and concepts
- Photoelectric cross section roughly scales as Z^n / E^3, with n varying by energy regime and atomic number Z, but near the K-edge you see a sharp rise.
- Absorbed intensity I = I0 exp-μt, where μ is the linear attenuation coefficient, which depends on the photoelectric cross section and the material’s density.
- μ at a given energy is a sum of contributions from photoelectric absorption, Compton scattering, and scattering processes; near the K-edge, the photoelectric term dominates for many elements.
Why the K-edge is special
- Element-specific: Each element has a unique K-edge energy, making it a fingerprint for elemental identification.
- Sensitive to chemical state: Shifts in the edge energy and changes in fine structure XANES/EXAFS reveal oxidation states and local geometry.
Experimental foundations: measuring K-edge absorption
Common techniques
- X-ray Absorption Spectroscopy XAS: Uses monochromatic X-rays to measure how absorption varies with energy around the K-edge.
- Fluorescence-mode XAS: Detects emitted fluorescence from the sample, useful for dilute or bulk samples.
- Transmission-mode XAS: Measure attenuation of X-ray beam through a sample; ideal for thin, homogeneous samples.
Typical data formats
- Raw spectra: Absorbance versus energy or wavelength
- Normalized spectra: Pre-edge baseline, edge step, and post-edge normalization to compare different samples
- XANES region: 5–50 eV around the edge, sensitive to oxidation state and coordination
- EXAFS region: 50–1000 eV and beyond, sensitive to distances and disorder around the absorbing atom
Data collection tips
- Calibrate energy using a known standard edge e.g., edge of a reference element
- Ensure good signal-to-noise near the edge; count rates and dwell times matter for fluorescence mode
- Consider self-absorption corrections in fluorescence measurements for accurate edge intensities
Cross sections and spectroscopy: how the data gets used
Absorption cross sections
- The K-shell photoelectric cross section is a fundamental input to models that convert measured absorption into material properties.
- Cross sections depend on photon energy, atomic number, electron binding energies, and atomic shell structure.
Spectroscopic applications
- Elemental quantification: Determine concentrations by comparing to standards using μE and depth-averaged attenuation
- Oxidation state analysis: XANES edge position and pre-edge features reveal oxidation state
- Coordination environment: EXAFS oscillations provide bond lengths and coordination numbers
- Phase identification in geology and archaeology: Distinguish minerals, glasses, and composites using edge features
Data interpretation: transforming raw data into chemical insight
Normalization and edge-step analysis
- Normalize to remove instrumental variations: pre-edge baseline, post-edge plateau
- Edge jump height relates to the absorbing element’s concentration and the sample's density
Edge energy determination
- Use edge energy definitions: inflection point of the normalized edge, or first derivative maximum
- Calibration with standards is crucial for accuracy ppm or weight-percent level
XANES features and chemistry
- White-line intensity: Often correlates with unoccupied p-states and can reflect oxidation states
- Pre-edge peaks: 1s → 3d transitions dipole-forbidden in centrosymmetric environments but allowed with p–d mixing, informative for coordination symmetry
EXAFS fitting basics
- Transform data to k-space and apply Fourier transforms to extract radial distribution information
- Model using scattering paths for atoms around the absorber to derive bond lengths and disorder
- Fit quality depends on accurate phase/shadow functions and good initial structural models
Practical formats: tables, lists, and step-by-step workflows
Step-by-step workflow for K-edge XAS analysis
- Define the goal: element identification, oxidation state, local geometry
- Collect reference standards at the same beamline and conditions
- Acquire spectrum from the sample in transmission or fluorescence mode
- Preprocess: normalize, background subtraction, calibrate energy
- Determine edge energy and edge jump
- Analyze XANES region for oxidation/state information
- Perform EXAFS analysis to extract local structure
- Compare with standards and simulations to draw conclusions
- Report uncertainties and discuss potential sources of error
Quick-reference checklist
- Element and edge: Confirm the K-edge energy for your target element
- Mode selection: Transmission for thin, uniform samples; fluorescence for dilute or thick samples
- Standards: Have reliable reference materials with known concentrations
- Calibration: Energy and intensity calibrations are non-negotiable
- Corrections: Self-absorption, background, and multi-scattering effects
- Validation: Cross-check with complementary spectroscopy like XRF or Raman if possible
Data quality metrics you’ll care about
- Signal-to-noise ratio near the edge
- Edge energy precision eV level
- EXAFS R-range and k-range coverage
- goodness-of-fit metrics for EXAFS models
- Reproducibility across scans and across sample replicates
Applications across fields
- Geology and environmental science: Identify trace elements in rocks and soils, track pollutant sources
- Materials science: Study alloys, nanoparticles, and catalysts; monitor oxidation and degradation
- Biology and medicine: Trace element mapping in tissues, metal-protein interactions
- Archaeology and art conservation: Analyze pigments and historical materials without destructive sampling
- Energy and catalysis: Understand active sites in catalysts through local structure and oxidation states
Debates, pitfalls, and best practices
- Edge shifts versus instrumental drift: Always calibrate with standards to avoid misinterpreting oxidation state
- Self-absorption effects in fluorescence: Correct for geometry and sample thickness
- Model dependence in EXAFS: Use multiple plausible models and report uncertainties
- Data provenance: Document beamline, detector settings, and sample environment for reproducibility
- Data sharing: Publish raw spectra and analysis scripts when possible to enable replication
Case studies: how K-edge data solves real problems
- Case study 1: Determining manganese oxidation states in battery cathodes during cycling using Mn K-edge XANES
- Observation: Edge shifts corresponding to Mn3+ to Mn4+ during charging
- Impact: Linked electrochemical performance with structural changes
- Case study 2: Mapping iron oxidation in geological samples with Fe K-edge XANES/EXAFS
- Observation: Distinct edge features correlated with mineral phases
- Impact: Improved understanding of ore formation and weathering processes
- Case study 3: Analyzing nanoparticle catalysts via Pt L-edge vs K-edge comparisons
- Observation: Local coordination environment inferred from EXAFS around different absorber atoms
- Impact: Informed catalyst design and synthesis routes
Advanced topics for further study
- X-ray absorption near-edge structure beyond basics XANES: Fingerprinting chemical states and coordination geometry
- EXAFS modeling tools and software: IFEFFIT, Artemis, Demeter, and FEFF codes
- Theoretical cross-section calculations: Relativistic corrections for high-Z elements
- Time-resolved XAS: Studying dynamic processes under operando conditions
Frequently Asked Questions
How is the K-edge energy determined for an element?
The K-edge energy is the binding energy of the K-shell electrons in that element. It’s identified as the point where there is a sharp rise in the photoelectric cross section as photon energy increases past the binding energy. In practice, researchers use standardized reference materials and calibration lines to locate this energy precisely. Edgerouter x vpn server setup guide for OpenVPN WireGuard IPsec and EdgeRouter configurations 2026
Why do we care about the K edge in spectroscopy?
Because the K edge provides a strong, element-specific signal. It allows you to detect, quantify, and study the chemical state and local structure of elements within complex samples.
What is XANES and EXAFS?
XANES refers to the X-ray Absorption Near Edge Structure region, which surrounds the K-edge and contains information about oxidation states and coordination geometry. EXAFS stands for Extended X-ray Absorption Fine Structure, which looks at oscillations beyond the edge to reveal local atomic arrangements around the absorber.
How do you correct for self-absorption in fluorescence measurements?
Self-absorption occurs when emitted fluorescence photons are reabsorbed before escaping the sample. Corrections typically involve modeling the sample geometry, thickness, and absorption coefficients, or using calibration standards to adjust the measured signal.
What uncertainties are common in K-edge spectroscopy?
Common uncertainties include energy calibration, sample thickness and homogeneity, detector efficiency, background subtraction, and model dependence in EXAFS fitting. Reporting these explicitly is essential for transparent results.
Can K-edge data distinguish oxidation states?
Yes, K-edge shifts and features in the XANES region are sensitive to oxidation states. Higher oxidation states often shift the edge to higher energies and modify peak intensities. Edge router explained: what it is, how it works, types, setup, security, and VPN implications 2026
What are typical applications of K-edge spectroscopy in geology?
Geologists use K-edge spectroscopy to characterize mineral phases, oxidation states of iron or manganese, and trace element distribution in rocks and soils, aiding explorations and environmental assessments.
How does one choose between transmission and fluorescence modes?
Use transmission when the sample is relatively thin and uniform, and you can achieve good attenuation without saturating detectors. Use fluorescence for dilute samples, thick specimens, or when transmission signal is weak or impractical to measure.
What software is commonly used for EXAFS analysis?
Artemis and Demeter part of the IFEFFIT suite are widely used for EXAFS data reduction and fitting. FEFF is used to generate theoretical scattering paths. These tools help translate raw data into structural parameters.
How do you validate K-edge measurements?
Validation comes from repeat measurements, comparison with standards, cross-checking with complementary techniques like XRF, EDS, or Raman, and ensuring that EXAFS fits are physically plausible with consistent bond lengths and coordination numbers.
If you want, I can tailor this guide to a specific element’s K-edge like Fe, Mn, or Ni or to a particular application area geology, battery materials, or biology. Does microsoft have vpn and what you should know about Windows built-in VPN, Azure VPN Gateway, and third-party options 2026
K edge photoelectric effect is the abrupt rise in X-ray absorption when photon energy crosses the binding energy of a material's K-shell electrons. In this guide, you’ll get a clear, practical understanding of what the K edge is, why it matters, how it’s measured, and how researchers use it in real-world studies—from materials science to biology. We’ll cover the physics basics, key equations, common element edge energies, experimental techniques like XPS and XAS, data interpretation tips, and even privacy-conscious research tips for online literature. Plus, if you’re doing research online and want a secure way to browse journals and paywalls, consider NordVPN—. This guide includes practical steps, examples, and references to trusted sources so you can dive in with confidence.
Useful URLs and Resources plain text
NIST X-ray Photoabsorption Edges
NIST Chemistry WebBook
X-ray Absorption Spectroscopy overview - en.wikipedia.org/wiki/X-ray_absorption_spectroscopy
XPS fundamentals - en.wikipedia.org/wiki/X-ray_photoelectron_spectroscopy
K-edge data and tutorials - xray.aps.anl.gov
Moseley’s law and shell model references - en.wikipedia.org/wiki/Moseley%27s_law
Introduction format overview
- Quick primer on the K edge
- Step-by-step guide to reading a K-edge spectrum
- Bullet list of common pitfalls and tips
Now, let’s break down the topic in a structured, reader-friendly way.
What is the K edge photoelectric effect?
The K edge is the specific photon energy at which electrons from the K-shell the innermost electron shell can be ejected from an atom. When X-ray photons have energy just above this binding energy, the likelihood of ejecting a K-shell electron jumps sharply, producing a noticeable increase in absorption. That sudden rise is the “K edge.” In practice, you’ll see this as a step-like increase in absorption coefficients or a sharp feature in X-ray absorption spectra. This edge marks the threshold where photons have enough energy to overcome the strong Coulomb attraction of the nucleus for the K-shell electrons.
In X-ray spectroscopy, the K edge serves as a diagnostic fingerprint. The exact energy of the K edge scales with the atomic number Z and the electronic structure of the element, so measuring the K-edge position helps identify elements, quantify composition, and even infer local chemical environments.
The physics behind the edge: a concise view
- Photoelectric effect basics: When a high-energy photon is absorbed by an atom in a solid, molecule, or gas, it can eject an electron from one of the shells if the photon’s energy exceeds the binding energy of that shell. Near the threshold, the cross-section probability for photoelectric absorption increases rapidly.
- K-shell specifics: The K-shell is the closest electron shell to the nucleus. Its binding energy rises quickly with atomic number. Consequently, the K edge shifts to higher energies as you move to heavier elements.
- Edge shape and structure: Right at the threshold, the absorption probability spikes. Just above the threshold, the cross-section decreases with energy roughly following a power-law trend that depends on Z and the photon energy. Subtle structure superimposed on the edge reveals information about the electronic states and bonding the near-edge region is called the X-ray Absorption Near Edge Structure, or XANES, in many contexts.
- Relation to Moseley’s law: Moseley’s law connects atomic number to the frequency of characteristic X-rays. it’s not the same as the K edge, but both ideas come from the quantum structure of the hydrogen-like inner shells and help explain why heavier elements have higher K-edge energies.
How K-edge energies vary across elements
- Carbon C: K-edge around 284 eV 0.284 keV
- Nitrogen N: K-edge around 409 eV 0.409 keV
- Oxygen O: K-edge around 543 eV 0.543 keV
- Aluminum Al: K-edge around 1560 eV 1.56 keV
- Silicon Si: K-edge around 1849 eV 1.85 keV
- Iron Fe: K-edge around 7.1 keV
- Nickel Ni: K-edge around 8.3 keV
- Copper Cu: K-edge around 8.9 keV
- Zinc Zn: K-edge around 9.6 keV
- Gold Au: K-edge around 80.7 keV
A practical takeaway: as Z grows, the K-edge moves to higher energies, spanning from the soft X-ray region up into hard X-rays for heavier elements. The exact edge position is used in material analysis to identify elements and to calibrate energy scales in spectroscopic experiments.
The photoelectric cross-section near the K edge
- General trend: The photoelectric cross-section σ_peE rises sharply as photon energy E approaches the K-edge energy E_K from below and then decreases at energies above the edge. The precise shape depends on the atomic number and local chemical state.
- Scaling intuition: In many energy ranges, σ_pe roughly scales with a high power of the atomic number Z and decreases roughly as a polynomial in energy, often described by σ_pe ∝ Z^n / E^m with n and m varying by energy region and element. Near the K edge, you’ll see a conspicuous, element-specific step in absorption.
- Practical impact: Because σ_pe is large for heavy elements, X-ray absorption spectroscopy XAS at the K edge is extremely sensitive to local structure around the absorbing atom. In XANES and EXAFS experiments, the edge position plus near-edge features reveal oxidation state, coordination geometry, and bond lengths.
Techniques that leverage the K edge
- X-ray Absorption Spectroscopy XAS: This umbrella term covers measurements of absorption as a function of photon energy. The region near the K-edge XANES provides information about electronic states and oxidation states. the higher-energy region EXAFS yields local structural information like bond lengths and coordination numbers.
- X-ray Photoelectron Spectroscopy XPS: In XPS, photons eject core-level electrons, and the emitted photoelectron’s kinetic energy is measured. The K-edge physics underpins the interpretation of core-level spectra, especially when considering the energy thresholds and edge shapes that influence peak positions and intensities.
- Electron microscopy adjuncts: Energy-dispersive X-ray spectroscopy EDS and electron energy loss spectroscopy EELS often exploit K-edge features to map elemental composition at high spatial resolution. The K edge features aid in identifying and quantifying elements across a sample.
Experimental considerations and data interpretation tips
- Energy calibration: Ensure your photon energy scale is accurately calibrated to detect the exact edge position. Small calibration errors can shift the inferred environmental information.
- Resolution matters: Edge features can be sharp. A higher energy resolution helps resolve pre-edge features and near-edge structure, improving oxidation-state assignments and coordination analyses.
- Detection methods: Transmission XAS measures attenuation through a sample, while fluorescence yield is used for dilute samples or thick materials. Each method has sensitivity trade-offs, so pick the method that matches your sample and concentration.
- Pre-edge and post-edge analysis: Look for pre-edge features associated with transitions to unoccupied states or anisotropic environments. Post-edge oscillations EXAFS reveal local geometry around the absorber.
- Reference standards: Compare to well-characterized standards to deduce oxidation states and coordination environments. A good reference set can dramatically improve interpretation.
- Data processing workflow: Normalize spectra, remove background, and apply Fourier transforms for EXAFS analysis. Tools like Athena IFEF and Artemis are commonly used in the XAS community.
- Common pitfalls: Misinterpreting edge position due to calibration drift, ignoring self-absorption effects in concentrated samples, or overlooking pre-edge features that carry important chemical information.
Practical workflow: from raw data to interpretation
1. Prepare your sample and collect XAS data across a broad energy range that brackets the K edge of the element of interest.
2. Calibrate the energy scale using a standard edge or a known reference.
3. Normalize the spectrum to remove variations in incident flux and sample thickness.
4. Identify the K-edge position E_K and examine the near-edge region XANES for oxidation state clues.
5. Subtract a smooth background to isolate the edge jump and pre-edge features.
6. If you have EXAFS data, apply a Fourier transform to isolate local structural information bond lengths, coordination numbers.
7. Compare your findings with reference compounds and literature to draw conclusions about chemical state and local geometry.
8. Report uncertainties and discuss potential systematic errors self-absorption, sample inhomogeneity, calibration drift.
Applications and real-world case studies
- Materials science: Determining oxidation states and local structure in catalysts, battery materials, and nanomaterials. The K edge helps identify the valence state of transition metals in, say, Li-ion battery cathodes or Fe-based catalysts.
- Geology and archaeology: Identifying elemental composition and oxidation states in minerals and ancient artifacts. K-edge XAS can reveal mineral phases and trace-element distributions.
- Biology and medicine: Investigating metalloproteins and metal cofactors e.g., iron, copper sites to understand function and enzymatic activity.
- Catalysis research: Tracking changes in local structure under reaction conditions. K-edge XANES/EXAFS helps quantify how active sites evolve during catalysis.
- Environmental science: Mapping metal contamination and speciation in soils or aerosols by exploiting characteristic K-edge signatures.
VPNs and online research security: a practical note for researchers
When you’re gathering data, papers, and datasets online, privacy and security matter. A reliable VPN helps protect your research activity from eavesdropping, ensures you can access region-locked bibliographic databases, and keeps your device safe on public networks. If you want a trusted option while browsing journals or downloading datasets, consider NordVPN—just click here to explore the options.
Data and statistics you can use today
- Edge energy range: K-edge energies span from a few hundred eV for light elements to tens of keV for heavy elements. This wide range is why X-ray spectroscopy facilities range from lab-based microfocus sources to synchrotrons and free-electron lasers.
- Sensitivity: K-edge measurements are routinely used to quantify trace elements down to parts-per-million in many materials when using appropriate detection modes transmission, fluorescence, or EELS.
- Resolution and science: High-resolution XANES data reveal oxidation states with minute differences in energy typical edge shifts of a few tenths of an eV to a couple of eV can indicate different chemical states.
- Cross-section behavior: The photoelectric cross-section is dominant at low to moderate energies for light and mid-Z elements, enabling strong absorption signals near the K edge. For very high energies, Compton scattering and other effects become more significant, so interpretation must account for multiple processes.
Common questions you’ll likely encounter
- How do I identify a K edge in a spectrum?
- What dictates the exact energy of the K edge for a given element?
- How does chemical bonding affect the K-edge near-edge structure XANES?
- How can I distinguish between different oxidation states using XANES?
- What are the main differences between XAS and XPS when studying K-edge features?
- Why is energy calibration critical in K-edge measurements?
- Which elements have the most easily measurable K edges in a standard lab setup?
- How do self-absorption effects influence EXAFS data?
- What role do synchrotron facilities play in K-edge XAS studies?
- How can I securely access paywalled literature while researching K-edge spectroscopy?
Frequently Asked Questions
# What is the K edge photoelectric effect in simple terms?
K edge photoelectric effect is the sudden increase in X-ray absorption that happens when photon energy crosses the binding energy of K-shell electrons, enabling their ejection.
# How is the K-edge energy determined for an element?
The K-edge energy is primarily determined by the element’s atomic number and electronic structure. Heavier elements have higher K-edge energies, and the exact position can be refined by experimental measurement and comparison with standards.
# What is X-ray Absorption Spectroscopy XAS?
XAS is a technique that measures how a material absorbs X-rays as a function of energy. The near-edge region XANES yields electronic and chemical information, while the far edge EXAFS provides local structural details.
# What’s the difference between K-edge and L-edge?
The K-edge involves ejecting a K-shell innermost electron, while L-edge refers to the second shell. K-edge edges occur at higher energies. L-edge edges probe different shells and provide complementary information about the chemical state.
# How do I interpret XANES features near the K edge?
XANES features—edge position, pre-edge peaks, and near-edge oscillations—reflect oxidation state, coordination geometry, and the electronic structure of the absorber. Careful comparison with reference compounds helps interpret these features.
# Can K-edge data tell me about oxidation state?
Yes. Shifts in the edge energy and changes in pre-edge features are commonly used to infer oxidation states and changes in coordination environments.
# What equipment is typically used for K-edge XAS?
Synchrotron radiation or high-brensity laboratory X-ray sources, energy-dispersive detectors, and software for data analysis normalization, background subtraction, Fourier transforms are standard.
# How accurate are K-edge measurements?
Accuracy depends on energy calibration, resolution, and sample quality. With good calibration and proper data processing, you can determine edge positions to within a few tenths of an eV in ideal cases, and a few eV in routine lab measurements.
# How do I protect my research privacy when browsing literature?
Using a reputable VPN helps secure data on public networks and preserves privacy while accessing journals. It also helps circumvent region-based access restrictions when allowed by your institution, while the main focus remains on ethical access and licensing.
# What practical tips help prevent misinterpretation of K-edge data?
- Calibrate energy scales accurately
- Use reference standards for oxidation states
- Consider self-absorption and sample geometry
- Cross-check with complementary techniques e.g., EDS, XRD
- Document preprocessing steps clearly for reproducibility
# How can I apply K-edge information to materials research?
K-edge data lets you quantify metal loading, oxidation state, and local coordination in catalysts, battery materials, and nanostructures. Combined with EXAFS, it provides a robust picture of the local atomic environment and its changes under operating conditions.
# Are there safety concerns when working with X-rays to study K edges?
Yes. X-ray experiments require proper shielding, interlocks, and training. If you’re using lab sources, follow all institutional safety protocols. When possible, conduct high-precision work at accredited facilities e.g., synchrotrons with appropriate approvals.
# How reliable are K-edge measurements for light elements?
K-edge features for light elements like C, N, O occur at soft X-ray energies, which can be challenging due to absorption by air and calibration sensitivity. With proper vacuum equipment or helium environments and modern detectors, reliable measurements are achievable.
# What role does the near-edge region play in practical analyses?
The near-edge region XANES contains rich information about oxidation state and local symmetry, while the extended region EXAFS provides quantitative structural data like bond lengths and coordination numbers. Together, they give a comprehensive picture of the absorber’s chemical environment.
# How should I present K-edge data in a publication?
Clearly show edge energy calibration, describe the preprocessing steps background subtraction, normalization, report edge positions with uncertainties, and include representative XANES/EXAFS plots alongside a table of structural inferences. Include references to standards and the software used for analysis.
# Can I study K edges with a standard lab X-ray source, or do I need a synchrotron?
You can study K edges of light-to-mid Z elements with lab-based sources, but high-quality detailed XANES/EXAFS data for heavier elements, or high signal-to-noise requirements, often benefit from synchrotron facilities with tunable, high-brightness X-rays.
# Where can I find reliable tutorials on K-edge spectroscopy?
Begin with NIST’s X-ray absorption edge data, XAS review articles, and vendor or facility tutorials from major synchrotron labs. Peer-reviewed reviews in journals like Journal of Synchrotron Radiation and Spectrochimica Acta provide practical guidance and case studies.
If you’re building a YouTube video around the K edge photoelectric effect, this outline helps you cover both the physics and the practical research workflow. Use visuals to show the edge as a step-like feature, graphs of σ_pe versus energy, and sample XANES/EXAFS spectra. Tie in real-world applications—catalysts, batteries, and materials science—to keep the audience engaged. And remember, for online research security during deep-dive sessions, a reliable VPN is a smart companion, especially when accessing paywalled papers or datasets from remote facilities.
